Mô tả

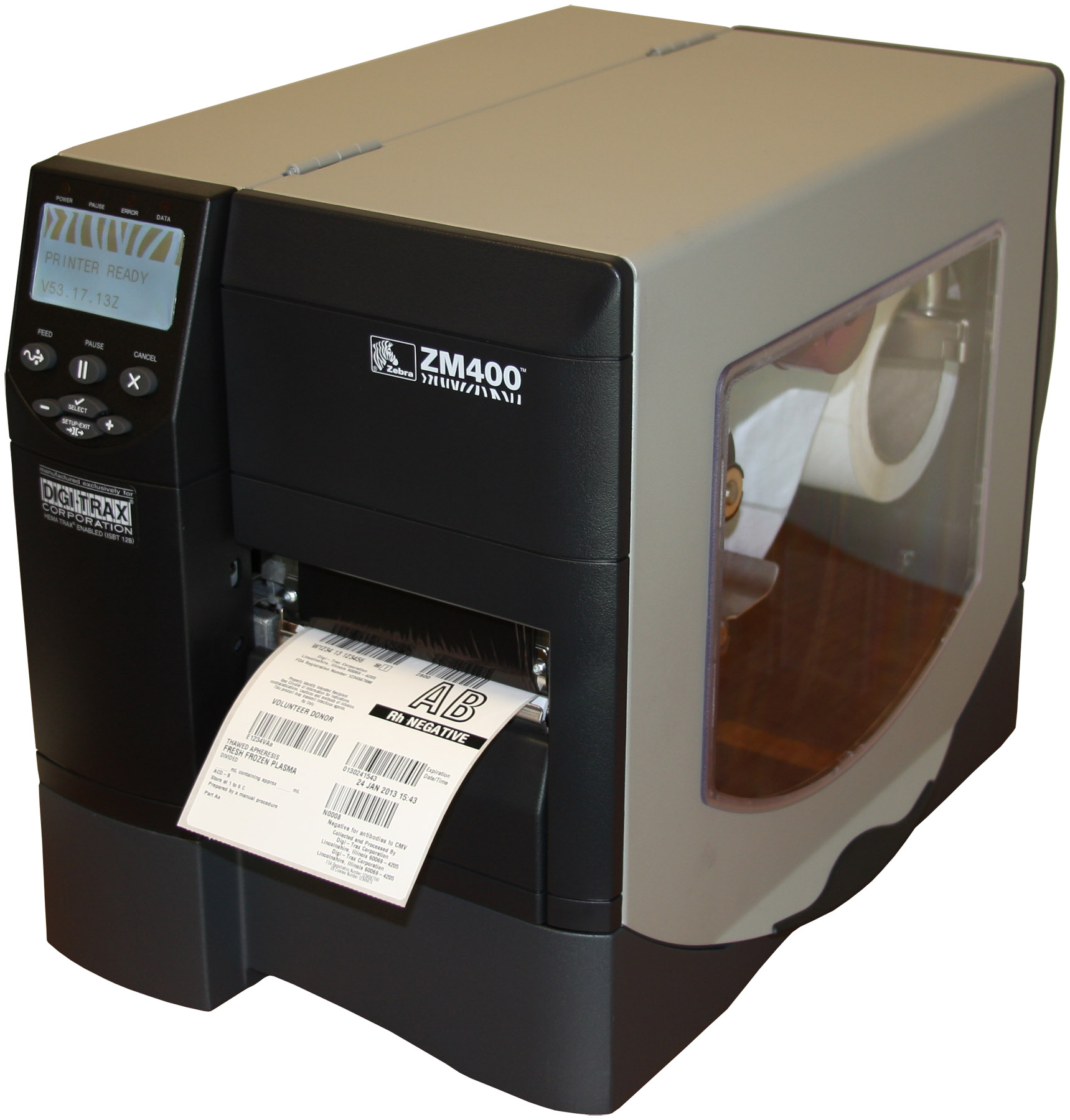

Máy in mã vạch Zebra ZM400
- Máy in mã vạch Zebra ZM400 được trang bị thêm những tính năng hiện đại giúp tăng hiệu suất máy. Với khả năng kết nối linh hoạt, Zebra ZM400 dễ dàng kết nối với xưởng sản xuất, kho hàng và những ứng dụng khác trong kinh doanh. Máy có thể in được nhãn RFID (Radio Frequency Identification, nhận dạng bằng sóng vô tuyến – một phương pháp nhận dạng tự động dựa trên việc lưu trữ dữ liệu từ xa). Được ví như con ngựa thồ, máy được trang bị khổ in rộng 4 in với tốc độ in lên tới 10in/s. Màn hình lớn 240×128 pixel, hỗ trợ đa ngôn ngữ.
- Đầu in máy in mã vạch Zebra ZM400 được trang bị bộ cân bằng năng lượng cho chế độ in tối ưu. Đầu in và đĩa in được thay dễ dàng. Máy có màu than chì, trang nhã và bền theo thời gian.
Thông số kỹ thuật:
More Standard Features
16 MB DRAM, 8MB Flash
203dpi (8 dots/mm) printhead
RS-232C Serial Interface
High Speed, IEEE 1284, Bi-Directional Parallel Interface
USB 2.0
Transmissive and reflective media sensors
Multi-lingual backlit 240×128 pixel graphic display
Color-coded operator cues
RFID Ready
7 bitmapped and 1 scalable font (CG Triumvarate Bold Condensed)
32-bit processor
Auto-calibration
Auto detectable (90V – 265V) power supply
Element Energy Equalizer™ (E3®) (for print head energy control)
Real Time Clock
Unicode™ – Compliant
Quick change printhead and platen
Charcoal gray form design (for improved smudge resistance)
ZPL® or ZPLII® (Zebra Programming Language®)
Printer Specifications
Resolution: 203 dpi (8 dots/mm)
300 dpi (12 dots/mm)
600 dpi (23.5 dots/mm)
Memory
16 MB DRAM
8 MB Flash
64 MB Factory-Installed On-Board Optional Flash (optional)
Print width: 4.09″ (104 mm)
Print length
Length with 203 dpi: 157″ (3,988 mm)
Length with 300 dpi: 73″ (1,854mm)
Length with 600 dpi: 39″ (991mm)
Print speed: 203 dpi
10″ (254 mm)/sec
300 dpi
8″ (203 mm)/sec
600dpi
4″ (102 mm)/sec
Media sensors: Reflective, Transmissive
Media Characteristics
Maximum label and liner width
4.5″ (114 mm) – tear & cutter
4.25″ (108mm) – peel & rewind
Minimum label and liner width: 1.0″ (25.4mm)
Maximum label and liner length: 39″ (991mm)
Maximum roll diameter: 8″ (203 mm)
Core diameter: 3″ (76 mm)
Media thickness: 0.0023″ (.058 mm) to 0.010″ (0.25 mm)
Media types: black mark, continuous, die-cut, fanfold, notched, perforated, tag stock
Ribbon Characteristics
Outside diameter: 3.2″ (81.3 mm)
Standard length: 1476” (450 m) or 984” (300 m)
Ratio: 3:1 media roll to ribbon ratio
Ribbon width: 2″ (51 mm) to 4.33″ (110 mm)
Ribbon: setup Ribbon wound ink-side out or ribbon wound ink-side in (configurable one or the other, but not both)
ID Core: 1.0″ (25.4 mm)
Operating Characteristics
Operating temperature TT: Operating temperature: 40° F (5° C) to 104° F (40° C)
Thermal transfer DT: Operating temperature: 32° F (0° C) to 104° F (40° C)
Direct thermal Storage temperatures: -40° F (-40° C) to 140° F (60° C)
Operating humidity: 20-85% non-condensing R.H.
Storage humidity: 5-85% non-condensing R.H.
Electrical: Universal auto-detectable (PFC-compliant) power supply 90-265 VAC
Agency approvals
IEC 60950-1 EN 55022 Class B
EN 55024
EN 61000-3-2
EN 61000-3-3
Physical Characteristics
Width: 10.9″ (278 mm)
Height: 13.3″ (338 mm)
Depth: 18.7″ (475 mm)
Weight: 32.4 lbs (15 kg)
Shipping weight: 49 lbs (22 kg)
Related Products
Options
300 dpi (12 dots/mm) printhead
600 dpi (23.5 dots/mm) printhead
64 MB Factory-Installed, On-Board Flash Memory (58 MB user available)
Cutter with catch tray
Value peel (front mount, passive peel option with no liner take-up)
Peel with liner take-up
Rewind, internally rewinds full label roll on three-inch core (comes with taller, non-standard printer base)
Ribbon supply spindle for ribbon ink coated inside
RFID Field Upgrade Kit – installed by an Authorized Service Provider or return to factory
ZebraDesigner
ZebraDesigner Pro
ZebraDesigner for XML
ZebraNet Bridge Enterprise
XML-enabled printing
Printhead conversion kits
ZebraCare Extended Warranty
European and Asian font sets
APL-I/APL-D firmware (contact Zebra Development Services for additional details)
ZebraNet Wireless Plus Print Server
ZebraNet b/g Print Server
Communication and Interface Capabilities
USB 2.0
RS-232C serial port
RS 232 to RS-422/485 serial port adaptor
RS232 DB9 to DB25 adaptor
High speed, IEEE 1284, bi-directional parallel interface
ZebraNet 10/100 Print Server
ZebraNet Wireless Plus Print Server
ZebraNet b/g Print Server
